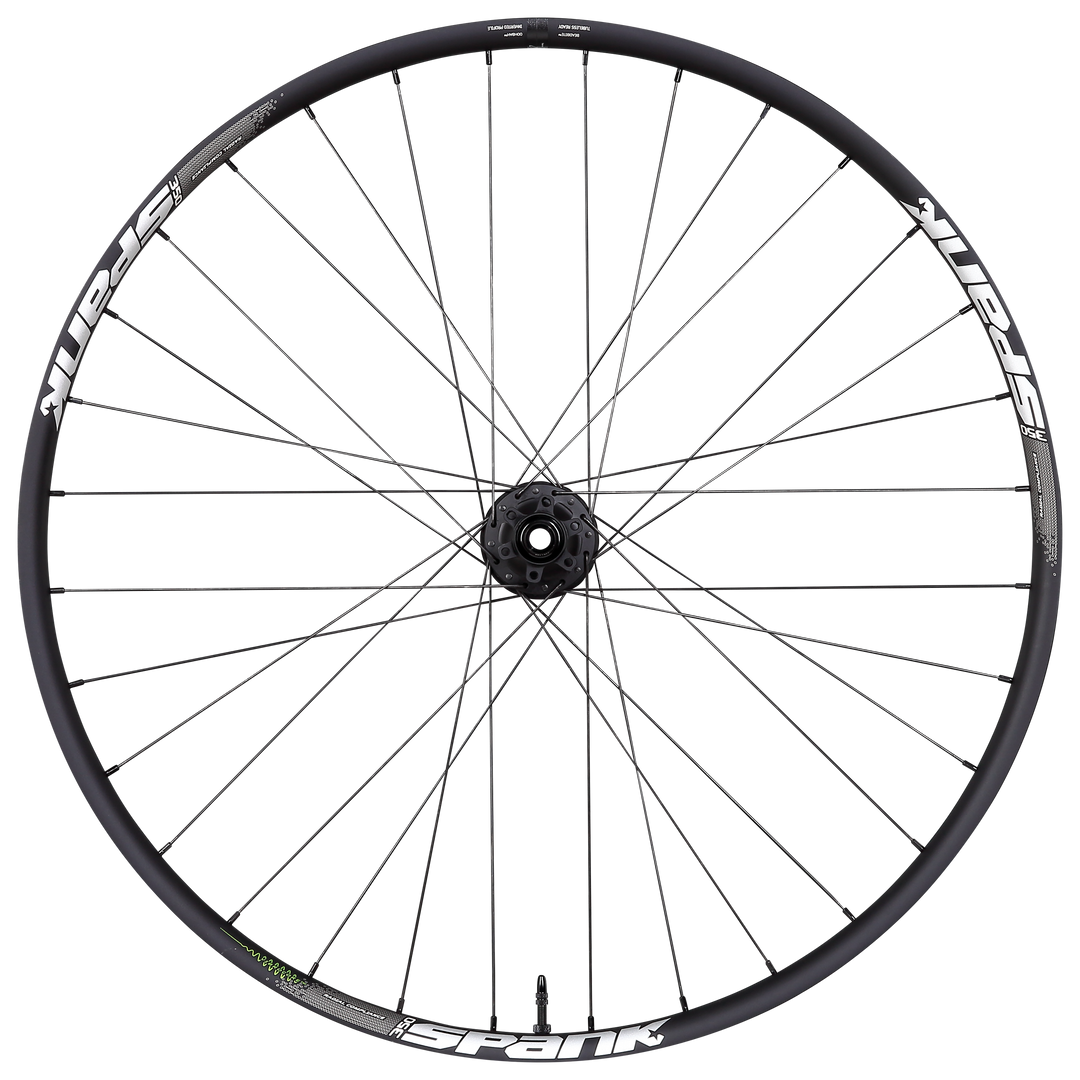

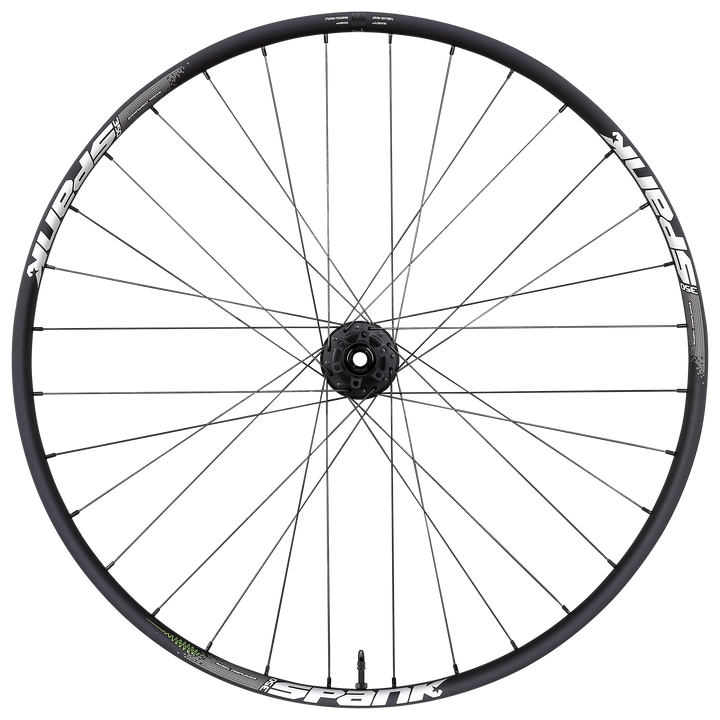

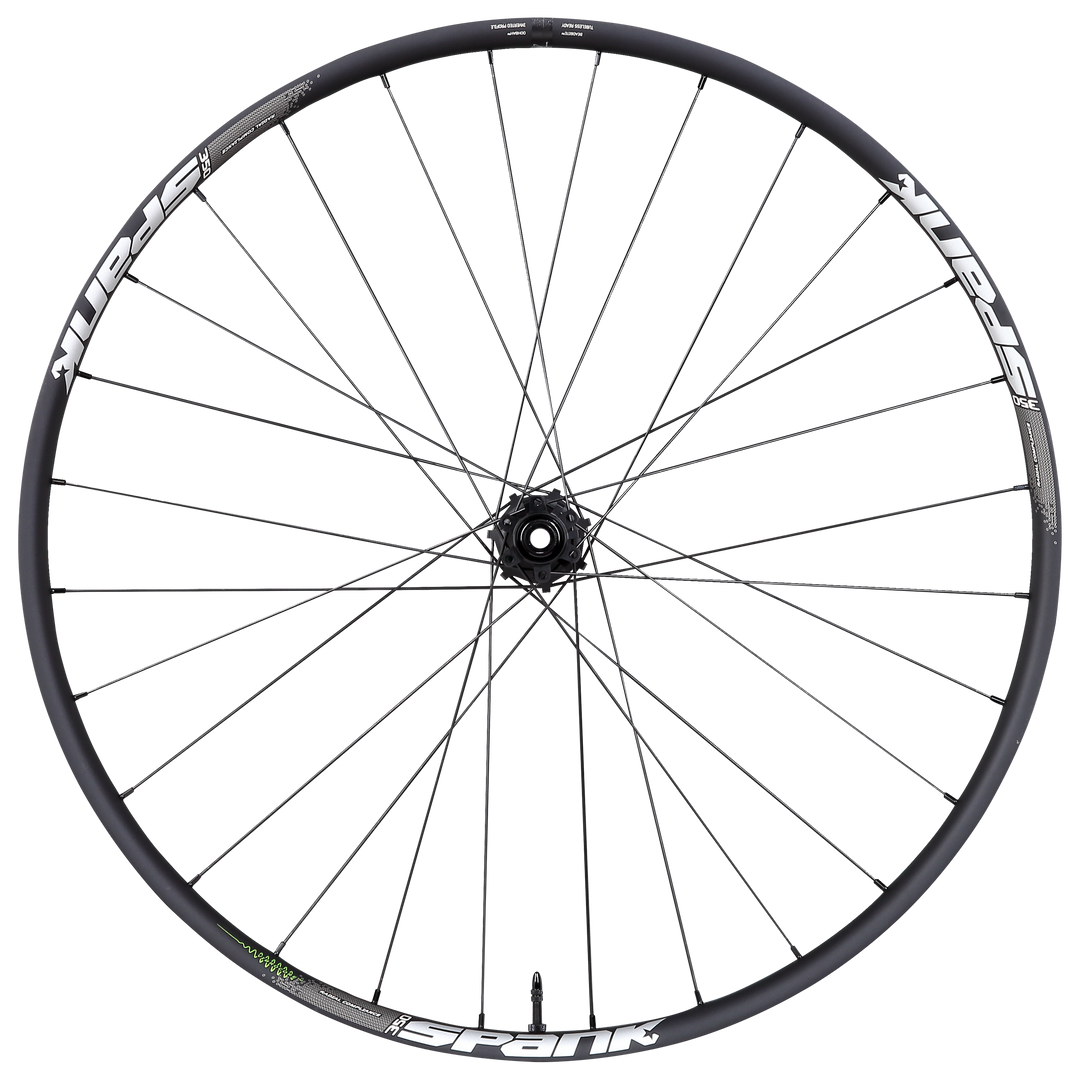

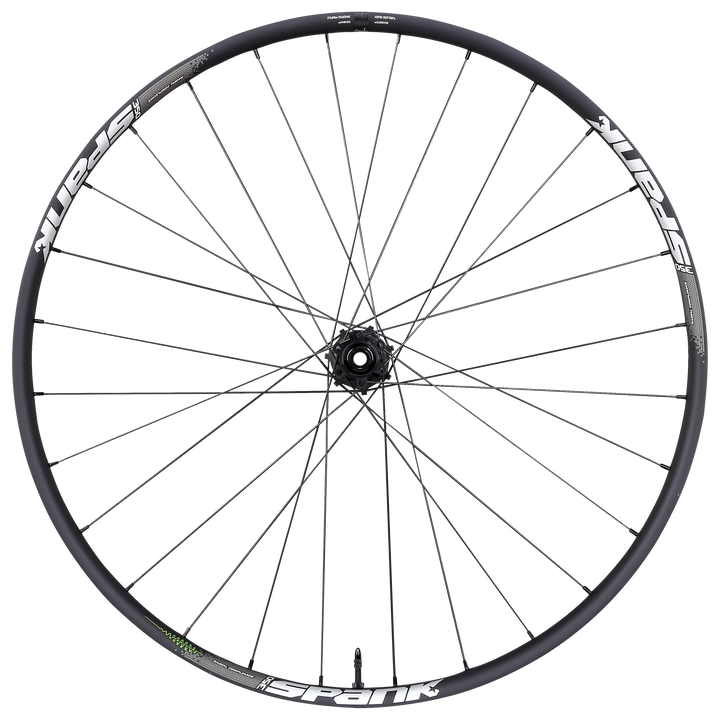

Spank 350 Vibrocore rear wheels are laced to the brand new SPANK HEX Drive Hub, with 102T 6-pawl ratchet offering 3.5 degrees of engagement - that's literally almost instant pick-up. The low profile, radially compliant alloy rim injected with SPANK's award-winning Vibrocore to add torsional strength and lateral stiffness, offers a smooth and highly responsive ride feel. Hand-built to A-Class specifications, the 350 Vibrocore wheels with SPANK Hex Drive hub is the premium offer from the SPANK wheelhouse, and is trusted by pros on the UCI DH World Cup and Enduro World Series circuit.
- Unique profile with low sectional height & wide width adds radial compliance & lateral stiffness
- Improved radial compliance for better traction over bumps & chatter while reducing negative feedback to the rider gives enhanced performance & comfort
- Vibrocore™ inner well reduces the transmission of harmful vibration frequencies & increases the fatigue life of the rim
- 30mm internal width is versatile fitting tires from 2” to 2.6” and allows plus size tire use without negative squaring off of tire profiles
FRONT WHEELS TO PAIR WITH:
 |
 |
|---|---|
| SPANK 350 | SPANK 350 VIBROCORE |
CLASSIFICATION & INTENDED USE: ASTM 5
| ALL MOUNTAIN |
TRAIL |
ENDURO |
FREERIDE |
|---|---|---|---|
| ✔ | ✔ | ✔ | ✔ |
| DOWNHILL | GRAVEL | XC | E-BIKE |
| ✔ | - | - | - |
HUMAN FACTOR
SPANK's recommendations for what body type and ride style this product is suited to.
| BODY WEIGHT & RIDE STYLE: | Heavy Rider | Medium Rider | Light Rider |
|---|---|---|---|
| Heavy Impact |
- | - | - |
|
Medium Impact |
- | ✔ |
✔ |
| Light impact |
- | ✔ |
✔ |
RIM SPECIFICATIONS
| HOLE COUNT: |
32/28 |
|---|---|
| INNER WIDTH (mm): |
30.5 |
|
OUTER WIDTH (mm): |
35 |
| PROFILE HEIGHT: |
17 |
| TYRE FIT |
2.0" to 2.6" |
BUILD SPECIFICATIONS
| 32H | 28H | |
| BUILD: |
A-Class Handbuilt |
A-Class Handbuilt |
| HUB: | SPANK HEX J-TYPE | SPANK HEX STRAIGHTPULL |
|
SPOKES: |
J-Hook, tripple butted 2.2/1.8/2.0 |
Straightpull, tripple butted 2.2/1.8/2 |
| NIPPLES: |
Brass external |
Alloy external |
| LACING: |
3 cross lacing |
3 cross lacing |
| VALVE: | F/V Presta |
F/V Presta |
| TUBELESS: | Tubeless taped & valved | Tubeless taped & valved |
HUB SPECIFICATIONS:
| ENGAGEMENT: |
HEX DRIVE 102T / 3.5° / 6 Pawl |
|---|---|
| HOLE COUNT: |
32H J-Hook / 28H Straightpull |
|
DISC MOUNT:
|
6-bolt |
| MATERIAL: |
CNC optimized forged alloy hub body, alloy axle, alloy freehub body |
VARIANT SPECS
(Available factory standard in XD and Shimano HG. Microspline freehubs available).
| HUB | HUB SPACING | BOOST | FREEHUB | HOLE COUNT | ADAPTER INCL. | WEIGHT | ERD | ETRTO | SPOKE LENGTH | SPOKE LENGTH | |
| 27.5" | HEX J TYPE | 12x148 | BOOST | HG | 32H | - | 1131g | 564++ | 584x30.5 | R-272 |
L-275 |
| HEX J TYPE |
12x148 |
BOOST |
XD |
32H |
- | 1123g |
564++ |
584x30.5 |
R-272 |
L-275 |
|
| HEX J TYPE | 12x150 |
- |
HG |
32H |
12x157 |
1132g | 564++ | 584x30.5 |
R-272 |
L-275 |
|
|
|
HEX J TYPE |
12x150 |
- | XD |
32H |
12x157 |
1124g | 564++ | 584x30.5 |
R-272 |
L-275 |
| HEX STRAIGHTPULL | 12x148 | BOOST | HG | 28H | - | 1055g | 564++ | 584x30.5 | R-286 | L-287 | |
| HEX STRAIGHTPULL | 12x148 | BOOST | XD |
28H | - | 1041g | 564++ | 584x30.5 | R-286 | L-287 | |
| 29" | HEX J TYPE | 12x148 |
BOOST | HG |
32H |
- |
1177g |
602++ |
622x30.5 |
R-291 |
L-294 |
| HEX J TYPE | 12x148 |
BOOST | XD |
32H |
- |
1169g |
602++ |
622x30.5 |
R-291 |
L-294 |
|
| HEX J TYPE | 12x150 | - | HG | 32H | 12x157 | 1178g |
602++ |
622x30.5 |
R-291 |
L-294 |
|
| HEX J TYPE | 12x150 | - | XD | 32H | 12x157 | 1170g |
602++ |
622x30.5 |
R-291 |
L-294 |
|
| HEX STRAIGHTPULL | 12x148 | BOOST | HG | 28H | - | 1100g | 602++ | 622x30.5 | R-305 | L-306 | |
| HEX STRAIGHTPULL | 12x148 | BOOST | XD | 28H | - | 1086g | 602++ | 622x30.5 | R-305 | L-306 |
Use the table below to determine compatible adapters & service parts, or visit the service parts collection by clicking here.
ADAPTERS COMPATIBLE WITH SPANK HEX J-TYPE REAR HUBS
|
Boost R148: |
HEX Rear Hub QRx135/141 Adapter |
|---|---|
|
R150/157: |
N/A |
|
R135/142: |
HEX Rear Hub QRx135/141 Adapter |
|
|
HEX Rear Hub 10x135 Adapter |
SERVICE KITS COMPATIBLE WITH SPANK HEX J-TYPE REAR HUBS
|
HEX Rear HG/HGR Hub Replacement Bearing Kit |
|
HEX Rear XD/XDR Hub Replacement Bearing Kit |
|
HEX Boost Rear Hub Alloy Axle Shaft |
|
HEX Rear Hub 135/142mm Alloy Axle Shaft |
|
HEX Rear Hub 150/157mm Alloy Axle Shaft |
|
HEX Rear Hub HG Alloy Anti-Bite Freehub |
|
HEX Rear Hub XD Alloy Freehub |
ADAPTERS COMPATIBLE WITH SPANK HEX STRAIGHTPULL REAR HUBS
|
Boost R148: |
Rear Hub QRx135/141 Adapter |
|---|
SERVICE KITS COMPATIBLE WITH SPANK HEX STRAIGHTPULL REAR HUBS
|
HEX Rear HG/HGR Hub Replacement Bearing Kit |
|
HEX Rear XD/XDR Hub Replacement Bearing Kit |
|
HEX Boost Rear Hub Alloy Axle Shaft |
|
HEX Rear Hub HG Alloy Anti-Bite Freehub |
|
HEX Rear Hub XD Alloy Freehub |
Wondering how strong our wheels are? See what happened when the GMBN crew tested them recently?
