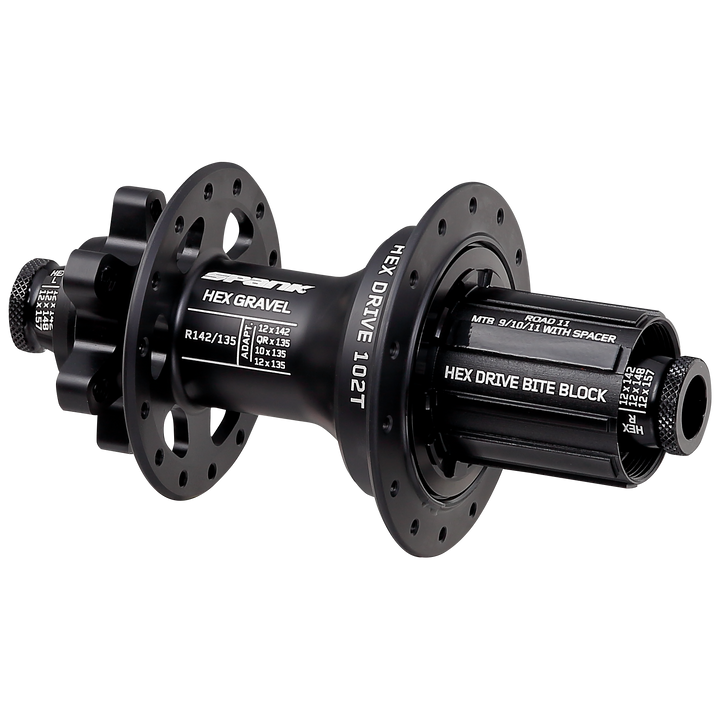

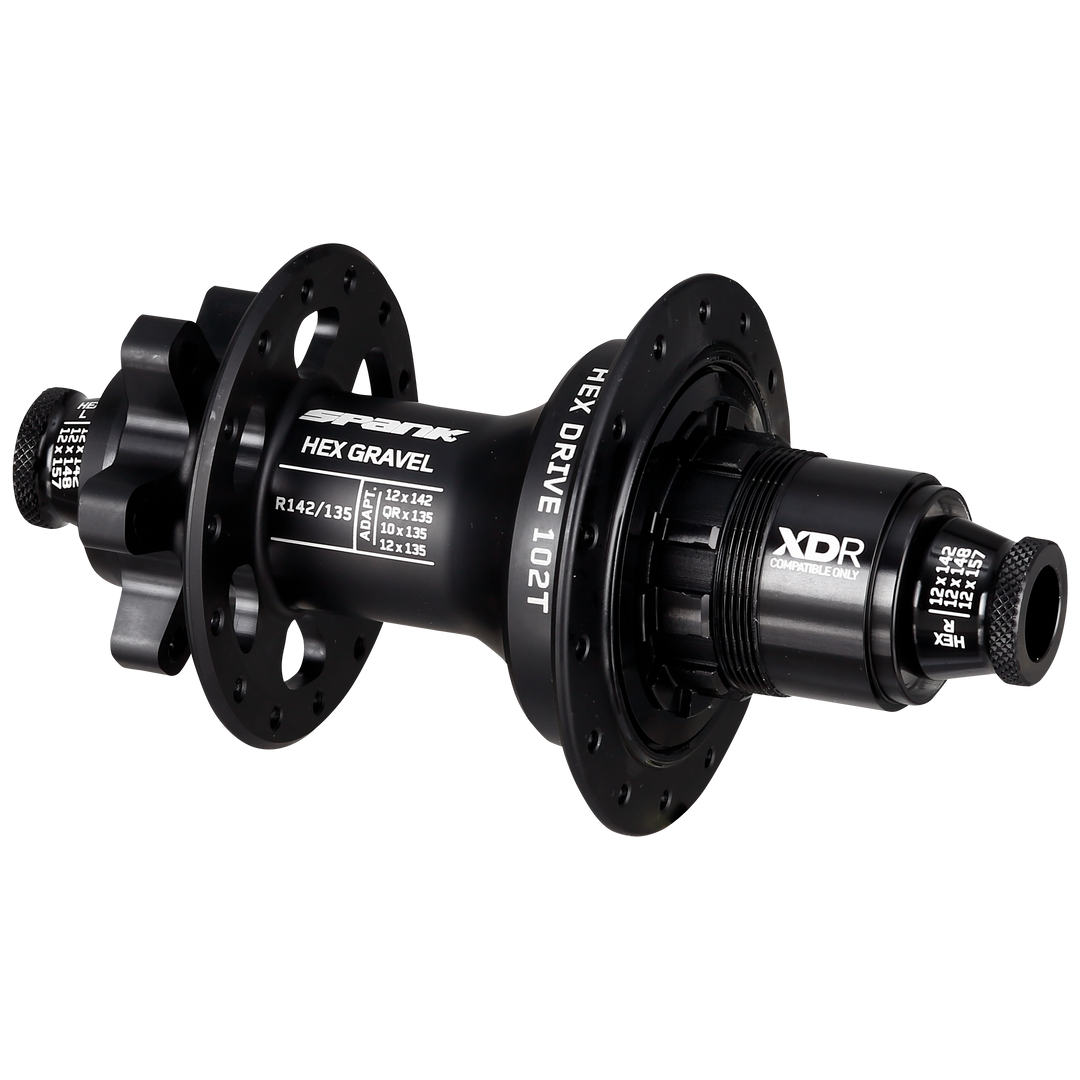

SPANK HEX GRAVEL Rear Hub
SPANK HEX GRAVEL Rear Hub

SPANK HEX GRAVEL Rear Hub

Regular price $209.99 Save Liquid error (product-template line 131): Computation results to '-Infinity'%
/

Only 0 items in stock!

The New SPANK HEX DRIVE HUB, featuring:

  • 102T, 6-Pawl 3.5 degree Engagement
  • Full Alloy body and axle
  • Bite Block Alloy freehubs
  • Advanced seal system



CLASSIFICATION & INTENDED USE

ALL MOUNTAIN TRAIL ENDURO FREERIDE DOWNHILL GRAVEL XC







  • SPANK's HEX DRIVE 102T technology delivers 3.5° engagement, for almost instant pickup
  • 6 independent pawls with 3 steps per pawl, work in unison, meaning 18 engagement points per click
  • Bite-Block Alloy HG and XD Freehub bodies resist damage from cassettes without the weight penalty of steel
  • Unique flange design reduces dish requirement and minimizes tension range between drive side and non-drive side spokes
  • Advanced seal system improves prevention of bearing/drive system contamination
  • Recommended for:  Gravel, XC



SPECIFICATIONS

ENGAGEMENT:

HEX DRIVE 102T / 3.5° / 6 Pawl

HOLE COUNT:

28H J-Hook

DISC MOUNT:

6-bolt

MATERIAL:

CNC optimized forged alloy hub body, alloy axle, alloy "Bite Block" freehub body

FINISH:

Matte anodized, laser logos




R135/142

CONFIGURATION:

12x142mm, J-Hook

FREEHUB:

Alloy HGR / Alloy XDR

WEIGHT +/- (g):

314 (HGR) / 309 (XDR)

ADAPTORS INCLUDED:

QRX135

ADAPTORS AVAILABLE SEPARATELY:

12X135, 10X135



Use the table below to determine compatible adapters & service parts, or visit the service parts collection by clicking here.

ADAPTERS COMPATIBLE WITH SPANK HEX GRAVEL REAR HUBS

R135/142:

HEX Rear Hub 12x135/150 Adapter



HEX Rear Hub 10x135 Adapter





SERVICE KITS COMPATIBLE WITH SPANK HEX GRAVEL REAR HUBS

HEX Rear HG/HGR Hub Replacement Bearing Kit

HEX Rear XD/XDR Hub Replacement Bearing Kit

HEX Rear Hub 135/142mm Alloy Axle Shaft

HEX Rear Hub HGR Alloy Anti-Bite Freehub & Spacer Ring

HEX Rear Hub XDR Alloy Freehub & Spacer Ring



HEX DRIVE HUB - WHEEL BUILDING RESOURCES:

SPANK IND - Spoke & Nipple Specifications for SPANK wheel builds

SPANK IND - StraightPull PCD & Offset info

SPANK IND - HEX DRIVE HUBS Dimensions
