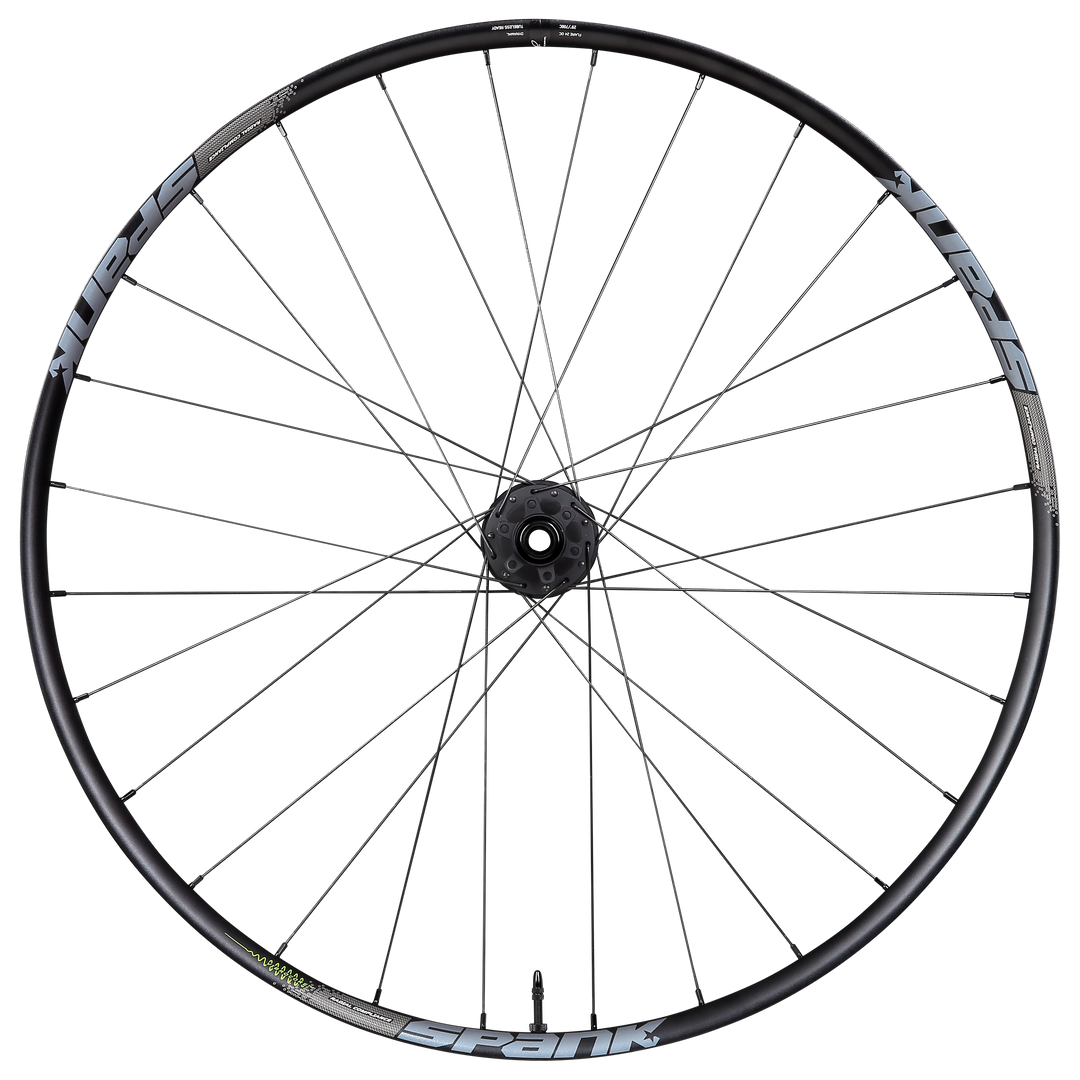

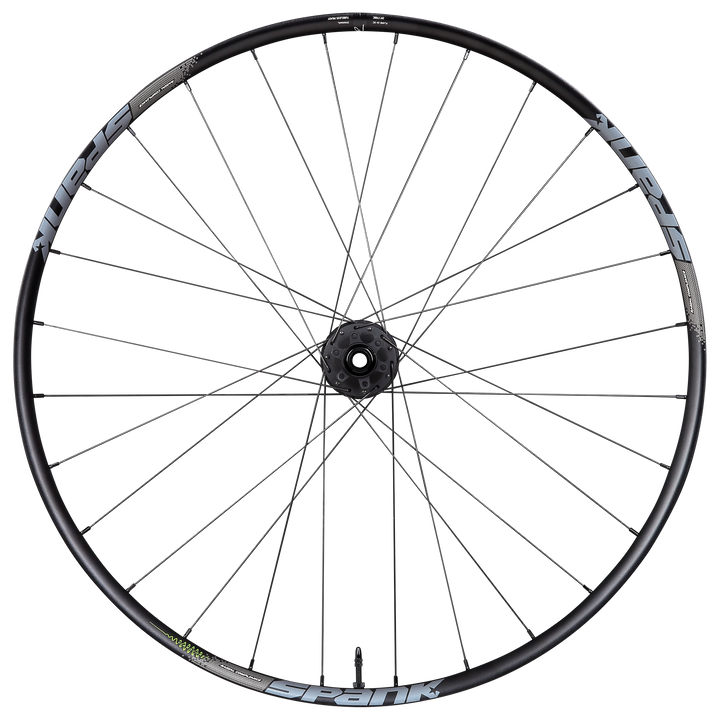

- Disc specific, tubeless ready, clincher rim, with Vibrocore™, optimized for Gravel, Adventure, and MTB Cross Country use
- Vibrocore™ inner well reduces the transmission of harmful vibration frequencies, improving rider comfort and increasing the fatigue life of the rim
- Low profile 16.5mm depth, and wide 27.5mm outer width enhance Radial Compliance, improving traction, while reducing negative feedback to the rider
- Asymmetric, 24mm inner width profile improves spoke tension balance between drive side and non-drive side spokes, and optimizes gravel/XC tire spread
- Bead Nip tubeless bead seats provide reliable tubeless performance even at low pressures
FRONT WHEELS TO PAIR WITH:
 |
|---|
|
SPANK FLARE 24 Vibrocore™ |
CLASSIFICATION & INTENDED USE: ASTM 3
| ALL MOUNTAIN |
TRAIL |
ENDURO |
FREERIDE |
|---|---|---|---|
|
- |
- |
- |
- |
| DOWNHILL | GRAVEL | XC | E-BIKE |
| - |
✔ |
✔ |
- |
HUMAN FACTOR
SPANK's recommendations for what body type and ride style this product is suited to.
| BODY WEIGHT & RIDE STYLE: | Heavy Rider | Medium Rider | Light Rider |
|---|---|---|---|
| Heavy Impact |
✔ |
✔ |
✔ |
|
Medium Impact |
✔ |
✔ |
✔ |
| Light impact |
✔ |
✔ |
✔ |
RIM SPECIFICATIONS
| HOLE COUNT: |
28 |
|---|---|
| INNER WIDTH (mm): |
24 |
|
OUTER WIDTH (mm): |
28 |
| PROFILE HEIGHT: |
16.5 |
| TYRE FIT |
35c to 62c, or 1.5" to 2.3" |
BUILD SPECIFICATIONS
| BUILD: |
Handbuilt |
|---|---|
| HUB: | SPANK HEX GRAVEL J-TYPE |
|
SPOKES: |
J-hook tripple butted 2.2/1.8/2 |
| NIPPLES: |
Alloy external |
| LACING: |
3 cross lacing |
| VALVE: | F/V Presta |
| TUBELESS: | Tubeless taped & valved |
HUB SPECIFICATIONS:
| ENGAGEMENT: |
HEX DRIVE 102T / 3.5° / 6 Pawl |
|---|---|
| HOLE COUNT: |
28H J-Hook |
|
DISC MOUNT:
|
6-bolt |
| MATERIAL: |
CNC optimized forged alloy hub body, alloy axle, alloy freehub body |
VARIANT SPECS
| HUB | HUB SPACING | BOOST | FREEHUB | HOLE COUNT | ADAPTER INCL. | WEIGHT | ERD | ETRTO | SPOKE LENGTH | SPOKE LENGTH | |
| 650b | HEX GRAVEL | 12x142 | - | HG-Road | 28H | QRx135 | 928g | 564++ | 584x24 | R-277 | L-278 |
| HEX GRAVEL | 12x142 | - | XDR | 28H | QRx135 | 920g | 564++ | 584x24 | R-277 | L-278 | |
| 700c | HEX GRAVEL | 12x142 | - |
HG-Road | 28H | QRx135 |
953g |
602++ | 622x24 |
R-296 |
L-297 |
| HEX GRAVEL |
12x142 |
- |
XDR |
28H |
QRx135 |
945g |
602++ |
5622x24 |
R-296 |
L-297 |
Use the table below to determine compatible adapters & service parts, or visit the service parts collection by clicking here.
ADAPTERS COMPATIBLE WITH SPANK HEX GRAVEL REAR HUBS
|
R135/142: |
HEX Rear Hub 12x135/150 Adapter |
|---|---|
|
|
HEX Rear Hub 10x135 Adapter |
SERVICE KITS COMPATIBLE WITH SPANK HEX GRAVEL REAR HUBS
|
HEX Rear HG/HGR Hub Replacement Bearing Kit |
|
HEX Rear XD/XDR Hub Replacement Bearing Kit |
|
HEX Rear Hub 135/142mm Alloy Axle Shaft |
|
HEX Rear Hub HGR Alloy Anti-Bite Freehub & Spacer Ring |
|
HEX Rear Hub XDR Alloy Freehub & Spacer Ring |
