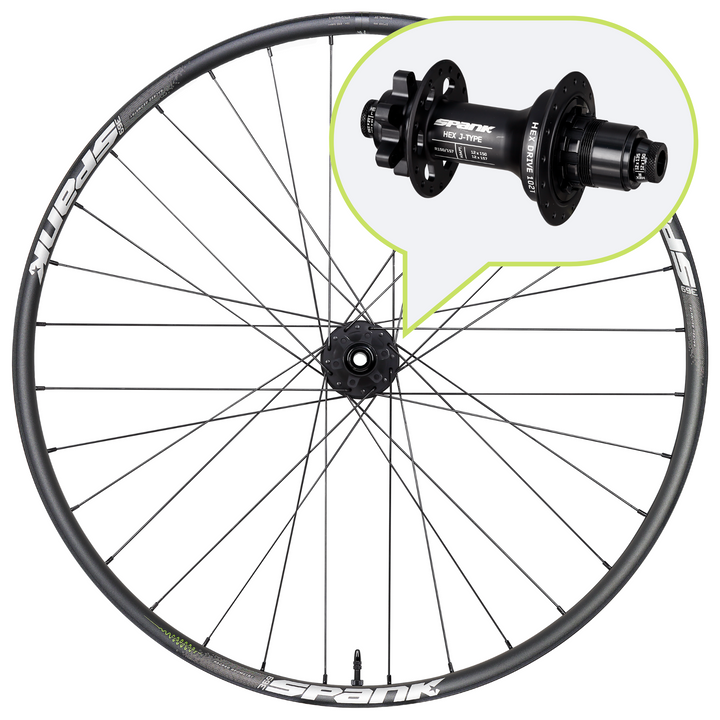

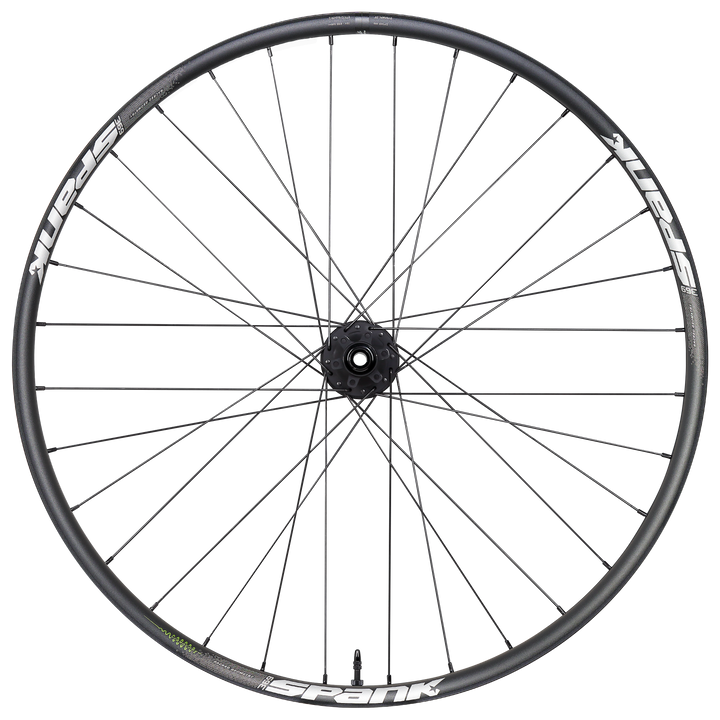

Spank 369 Vibrocore rear wheels are laced to the brand new SPANK HEX Drive Hub, with 102T 6-pawl ratchet offering 3.5 degrees of engagement - that's literally almost instant pick-up. The low profile, radially compliant alloy rim injected with SPANK's award-winning Vibrocore to add torsional strength and lateral stiffness, offers a smooth and highly responsive ride feel. Hand-built to A-Class specifications, the 369 Vibrocore wheels with SPANK Hex Drive hub is the premium offer from the SPANK wheelhouse and is trusted by pros on the UCI DH World Cup circuit, as well as big mountain free-riders. This wheel is spec'd and built for the heavy hitters.
- Sacred Geometry hollow bead wall design improves lateral and vertical strength. Wider bead wall effectively reduces pinch flats and increases impact resistance.
- 19mm profile height and wide width balances the benefits of radial compliance with high lateral stiffness and predictable handling
- Radial Compliance improves traction over bumps and chatter while reducing negative feedback to the rider. Performance and comfort are improved.

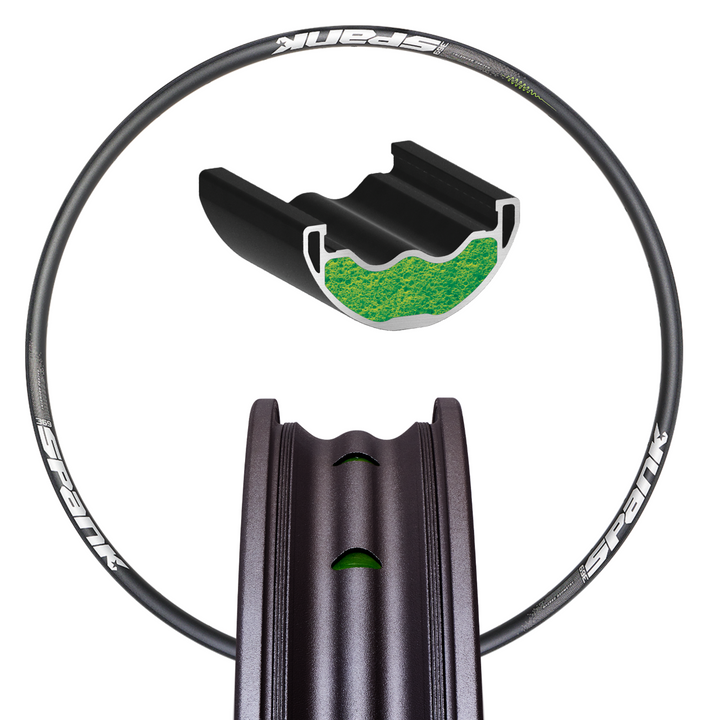

- Vibrocore™ inner well, reduces the transmission of harmful vibration frequencies, meaning less vibration for the suspension and rider, also increasing the fatigue life of the rim
- 30.5mm inner width is extremely versatile, fitting tires from 2.0” to 2.6”, and even allowing + size tire use without negative squaring off of tire profiles
- Bead Bite tubeless hooks enhance tubeless performance and tire security, even at lower pressures
- 150/157 wheels will also fit Superboost applications - Evil, Pivot, Devinci, etc.
REAR WHEELS TO PAIR WITH:
 |
 |
|
|---|---|---|
| SPIKE 369 FRONT WHEEL | SPIKE 359 VIBROCORE FRONT WHEEL |
VARIANT SPECS

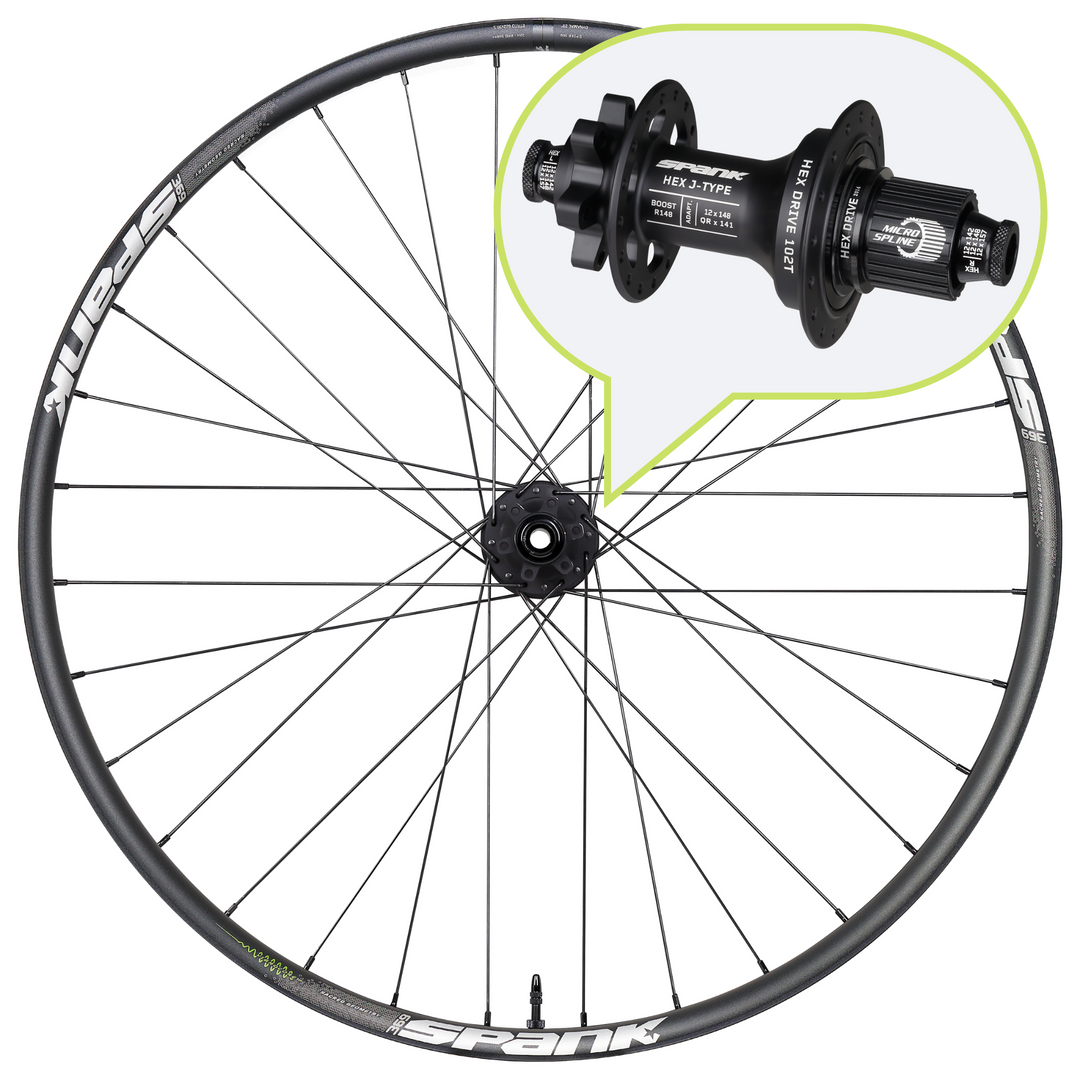

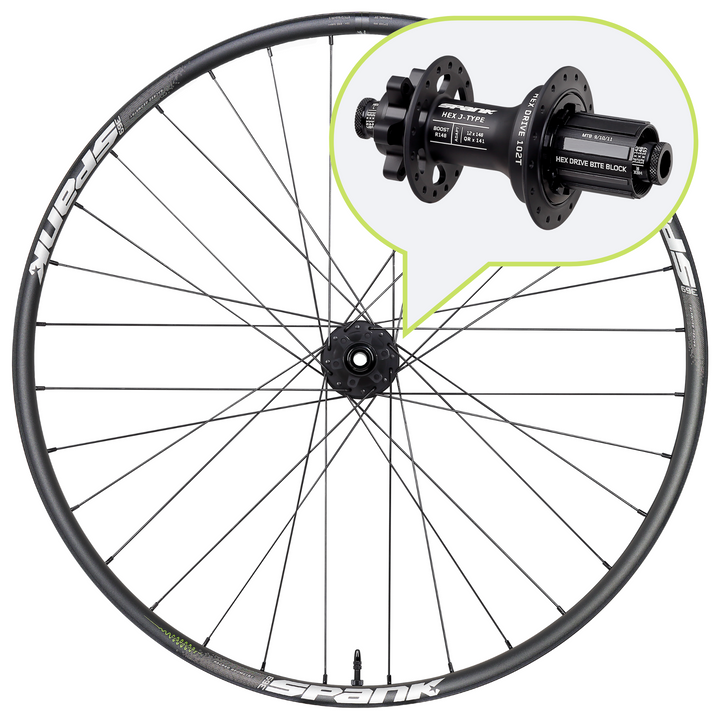

(Available factory standard in XD and Shimano HG. Micro spine freehubs available).
| HUB | HUB SPACING | BOOST | FREEHUB | HOLE COUNT | ADAPTER INCL. | WEIGHT | ERD | ETRTO | SPOKE LENGTH | SPOKE LENGTH | |
| 27.5" | HEX J TYPE | 12x148 | BOOST | HG | 32H | - |
1219g | 560++ | 584x30.5 | R-270 |
L-273 |
|
|
HEX J TYPE |
|
|
XD |
|
- |
1211g |
|
|
R-270 |
L-273 |
|
|
HEX J TYPE | 12x150 |
- |
HG |
|
12x157 |
1220g |
|
|
R-270 |
L-273 |
|
|
HEX J TYPE |
|
- | XD |
|
|
1212g |
|
|
R-270 |
L-273 |
|
|
|||||||||||
|
|
HEX J TYPE | 12x148 |
BOOST | HG |
|
- |
1267g |
598++ |
622x30.5 |
R-289 |
L-292 |
|
|
HEX J TYPE | 12x148 |
BOOST | XD |
|
- |
1259g |
598++ |
622x30.5 |
R-289 |
L-292 |
| HEX J TYPE | 12x150 | - | HG |
|
|
1268g |
598++ |
622x30.5 |
R-289 |
L-292 |
|
| HEX J TYPE | 12x150 | - | XD |
|
|
1260g |
598++ |
622x30.5 |
R-289 |
L-292 |
COMPATIBLE REAR ADAPTERS
|
Boost R148: |
|
|---|---|
|
R150/157: |
N/A |
|
R135/142: |
|
|
|
COMPATIBLE SERVICE KITS
CLASSIFICATION & INTENDED USE: ASTM 5
| ALL MOUNTAIN |
TRAIL |
ENDURO |
FREERIDE |
|---|---|---|---|
|
|
|
|
|
| DOWNHILL | GRAVEL | XC | E-BIKE |
|
|
- | - | * |
* Recommended for E-Bike when adapting with SPANK HEX DRIVE steel freehub (available as a separate purchase in HG, XD, and Microspline. (See Hex Drive Service Parts)
HUMAN FACTOR
SPANK's recommendations for what body type and ride style this product is suited to.
| BODY WEIGHT & RIDE STYLE: | Heavy Rider | Medium Rider | Light Rider |
|---|---|---|---|
| Heavy Impact |
|
|
|
|
|
|
|
|
| Light impact |
|
|
|
RIM SPECIFICATIONS
| HOLE COUNT: |
32 |
|---|---|
| INNER WIDTH (mm): |
30.5 |
|
|
35 |
| PROFILE HEIGHT: |
19 |
| TYRE FIT |
2.0" to 2.6" |
BUILD SPECIFICATIONS
| BUILD: |
A-Class Handbuilt |
|---|---|
| HUB: | SPANK HEX J-TYPE |
|
|
J-Hook, triple-butted 2.2/1.8/2.0 |
| NIPPLES: |
Brass external |
| LACING: |
3 cross lacing |
| VALVE: | F/V Presta |
| TUBELESS: | Tubeless taped & valved |
HUB SPECIFICATIONS:
| ENGAGEMENT: |
|
|---|---|
| HOLE COUNT: |
|
|
DISC MOUNT:
|
|
| MATERIAL: |
|
FREEHUB COMPATIBILITY – What freehub do I need?
